Platform
FlyingV
-
Model name

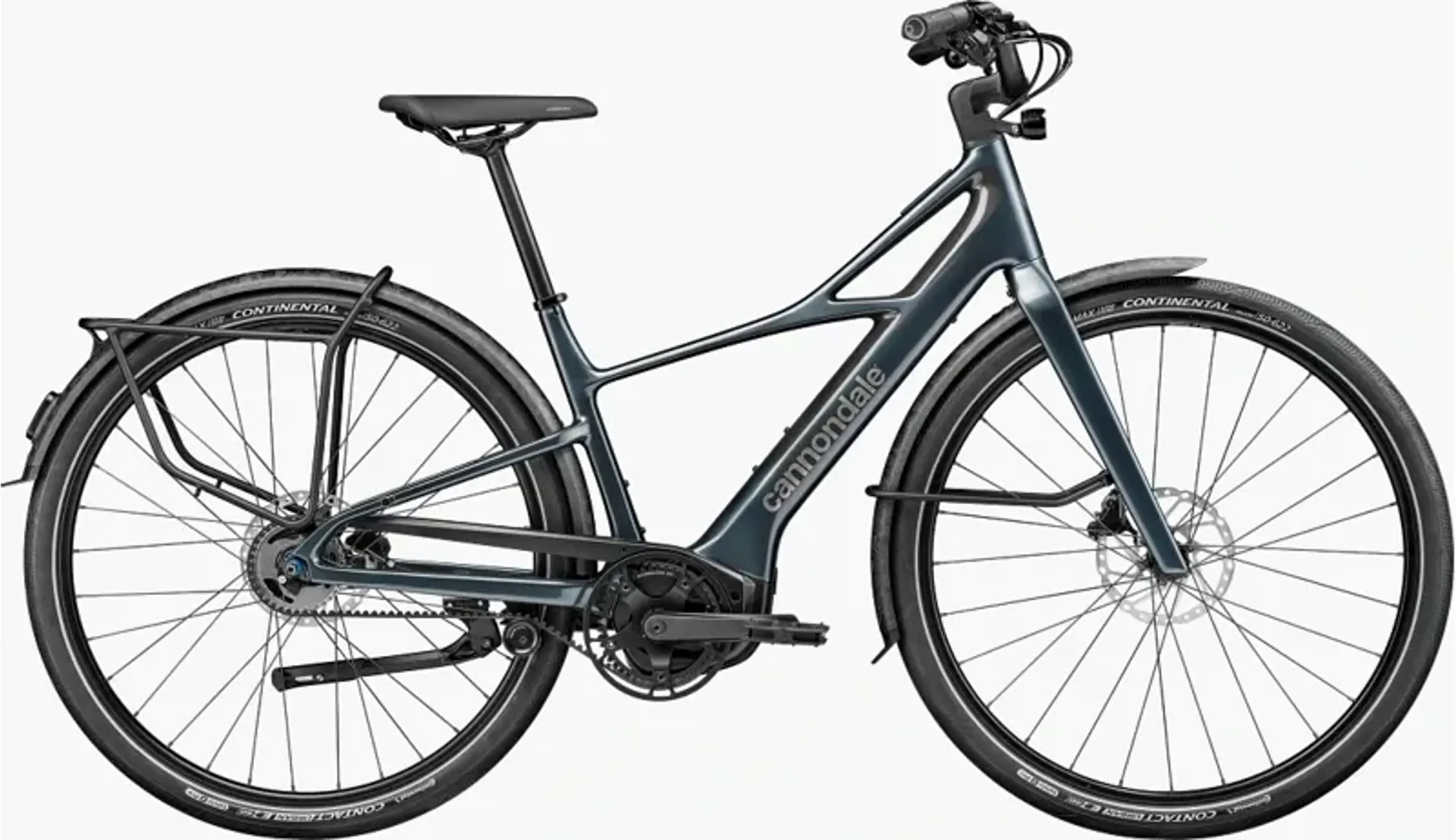

FlyingV 2
-
Model code
C64135U
-

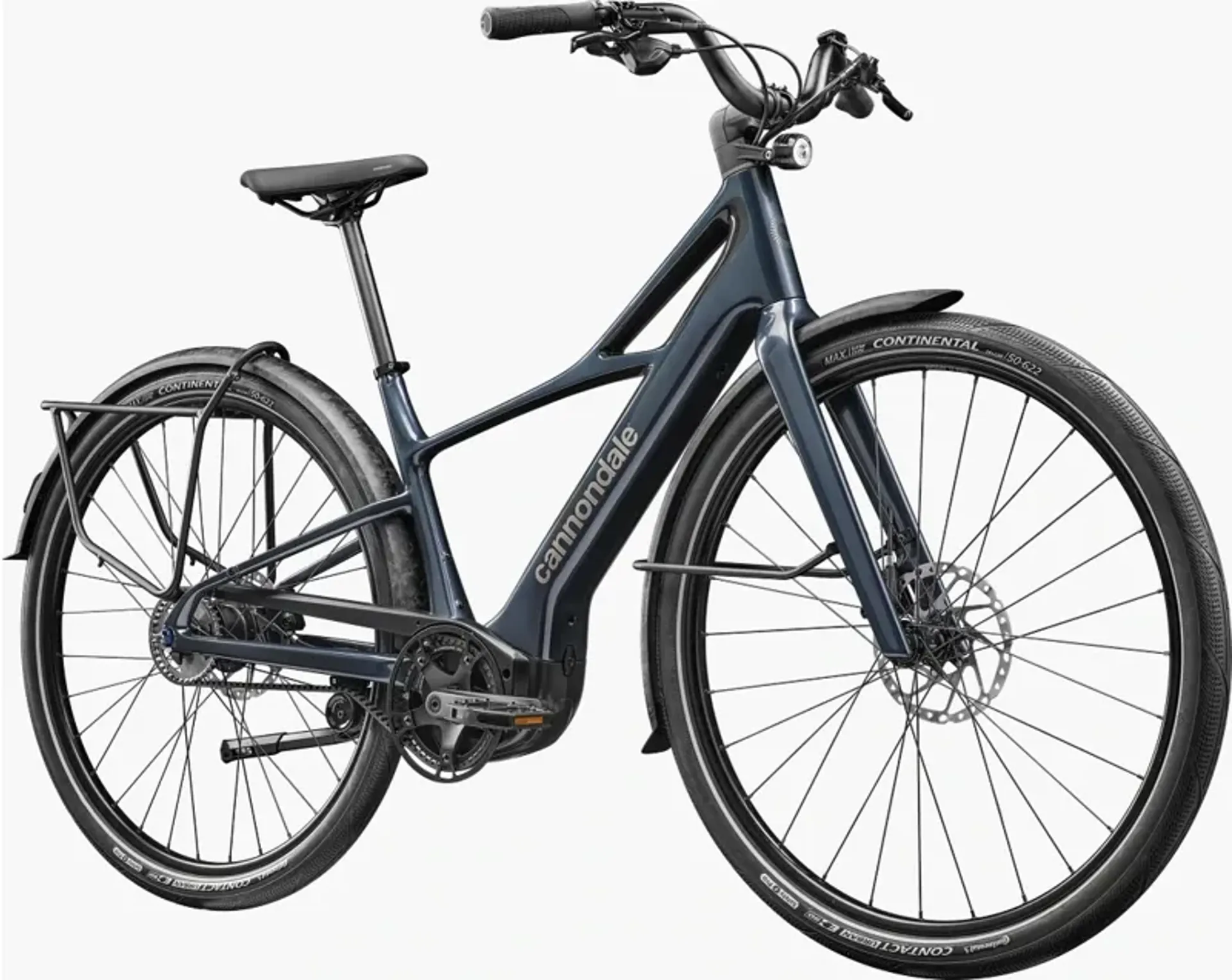

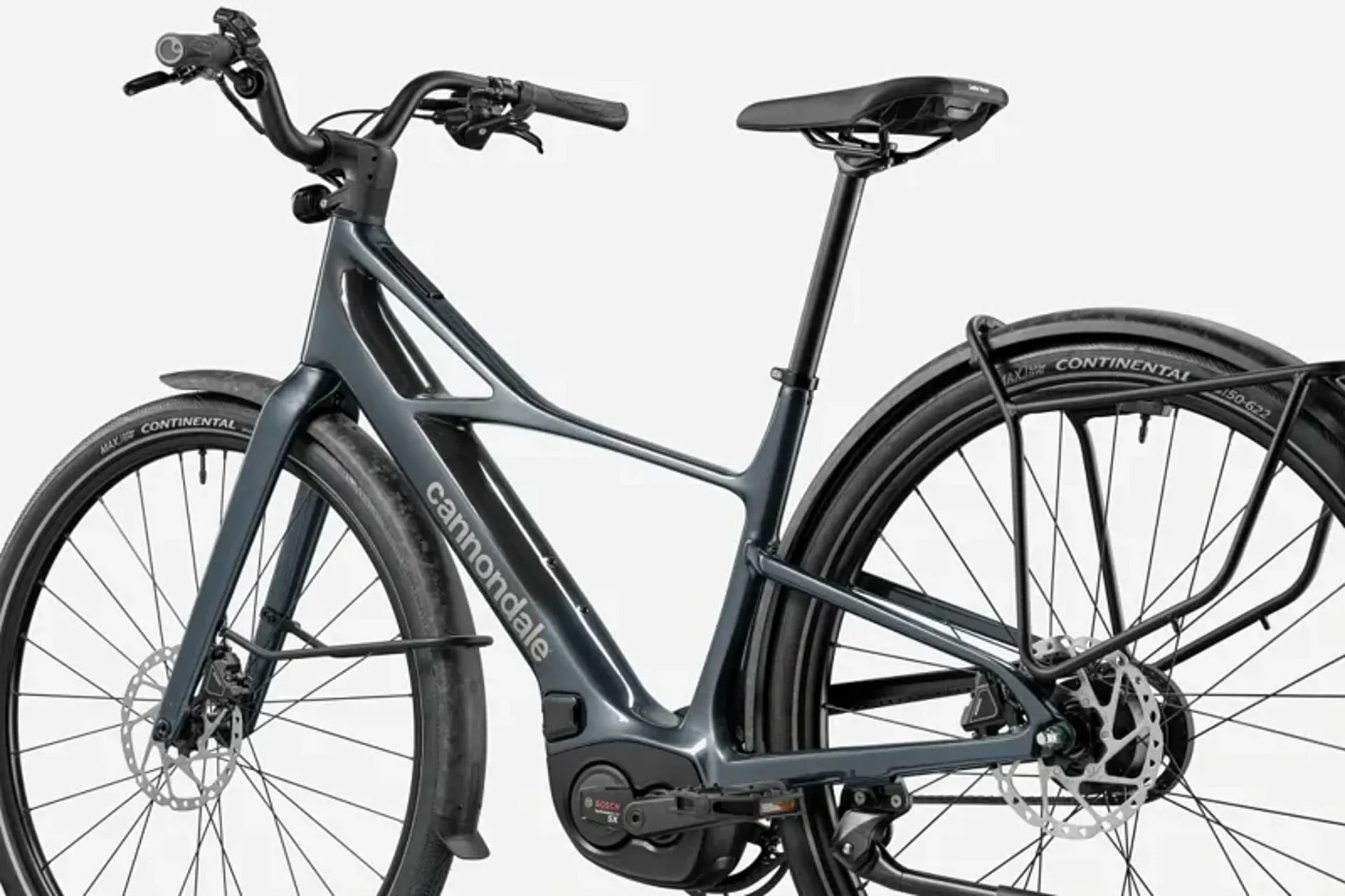

Frame
FlyingV, lightweight carbon construction, internal downtube battery, integrated cable routing, 135mm dropout spacing, 1.5" headtube, flat mount disc, removable kickstand mount (40mm Pletscher-style), hidden holder for bluetooth tracking device (Chipolo, Airtag, etc)
-
Fork
Flying V, lightweight carbon construction, 1.25 - 1.5" tapered steerer, flat mount disc, internal routing, 12x100 thru-axle
-
Headset
Integrated sealed bearing, tapered, internal cable routing
-

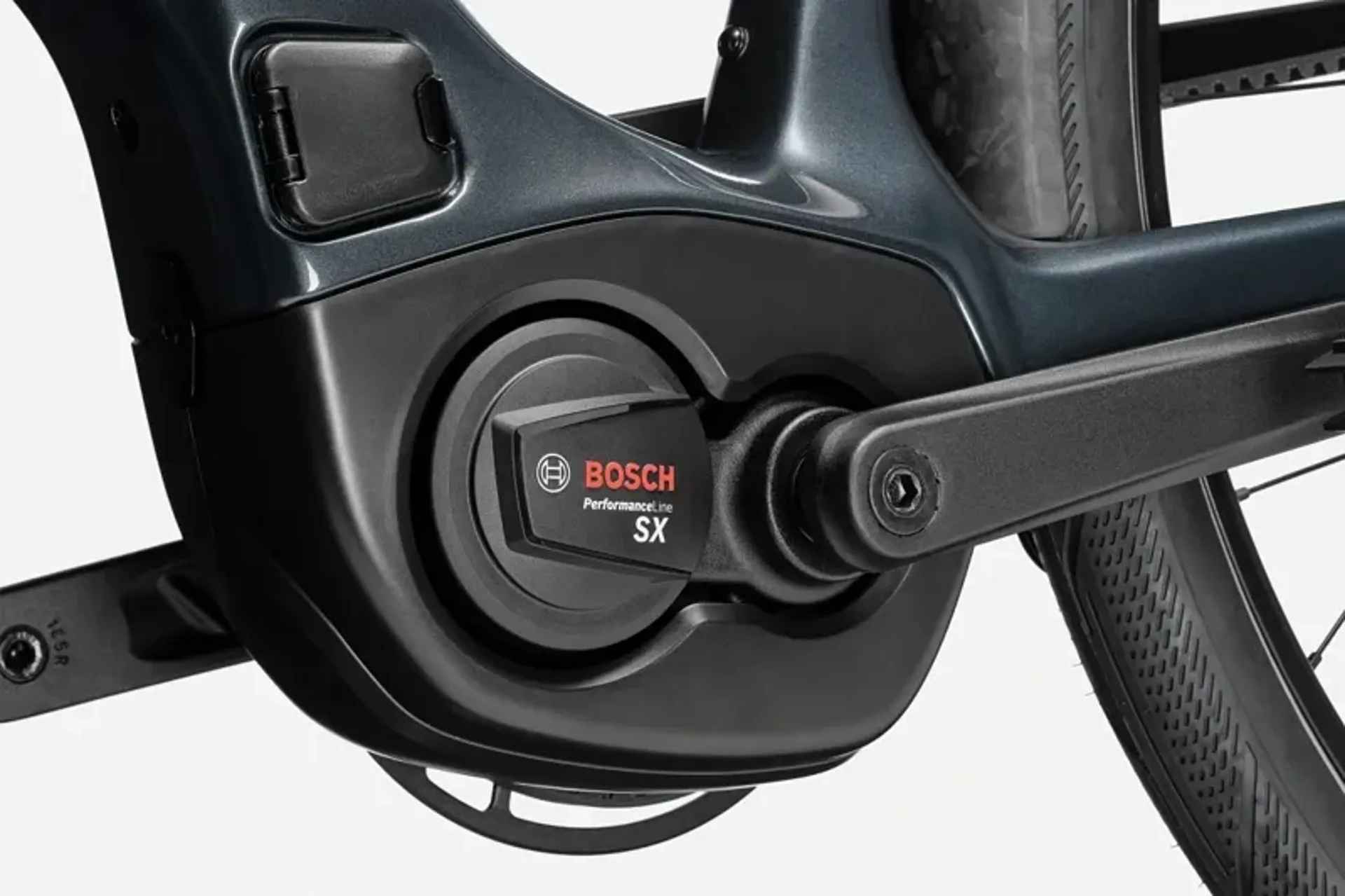

Drive unit
Bosch Performance Line SX, Smart System, 60Nm, 600W max/250W nominal, 25km/h
-
Battery
Bosch CompactTube, 400Wh
-
Charger
Bosch 2A
-
Display
Bosch LED Controller
-

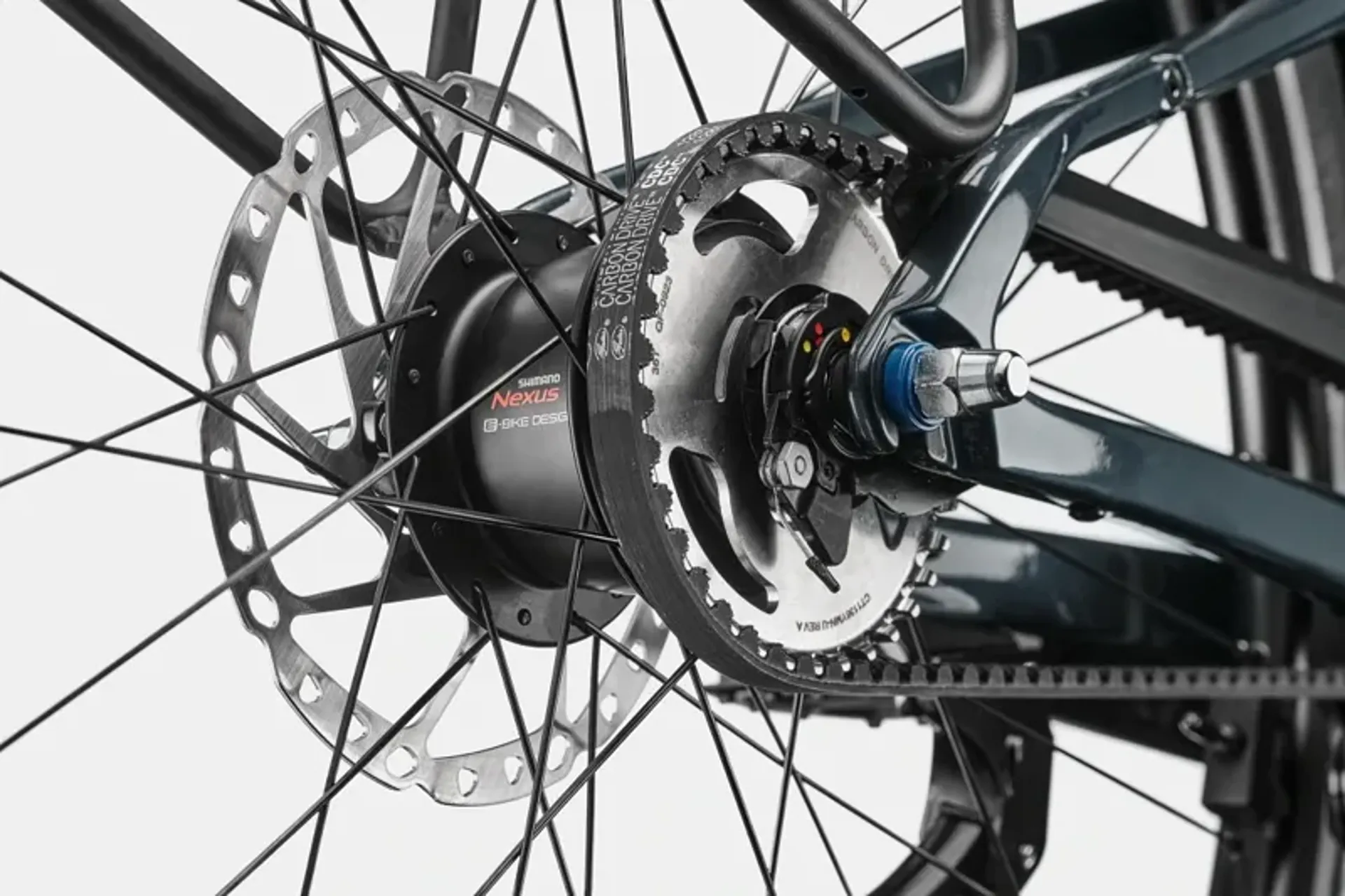

Rear derailleur
Shimano Nexus Inter-5E, 5-speed internal gear hub
-
Shifters
microSHIFT trigger-shift, 5-speed
-
Chain
Gates CDX Center Track high-performance carbon belt, 128T
-
Crank
Samox Bosch E-bike, left 0 offset, right 13mm offset, w/ 46T Gates sprocket
-
Rear cogs
Gates CDX, 36T
-
Brakes
Shimano UR300 hydraulic disc, 180/180mm RT64 rotors
-
Brake levers
Shimano MT201 hydraulic disc
-
Rims
Ryde, alloy, double wall, 32 hole, 25mm internal width, disc-specific
-
Spokes
DT Swiss Champion
-
Tire size
50
-
Wheel size
700c
-
Hubs
(F) Shimano TC500, 12x100mm thru-axle, centerlock / (R) Shimano Nexus Inter-5E, 5-speed internal gear hub, centerlock
-
Tires
Continental Contact Urban, 700x50c (50-622)
-

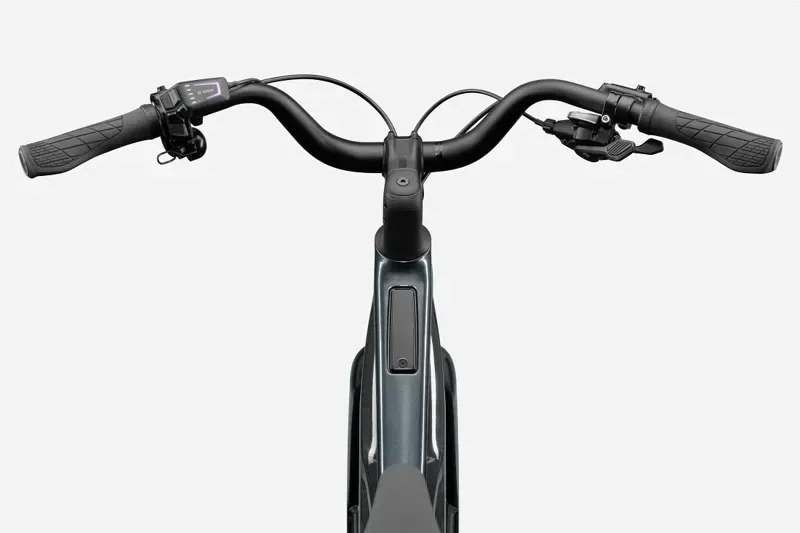

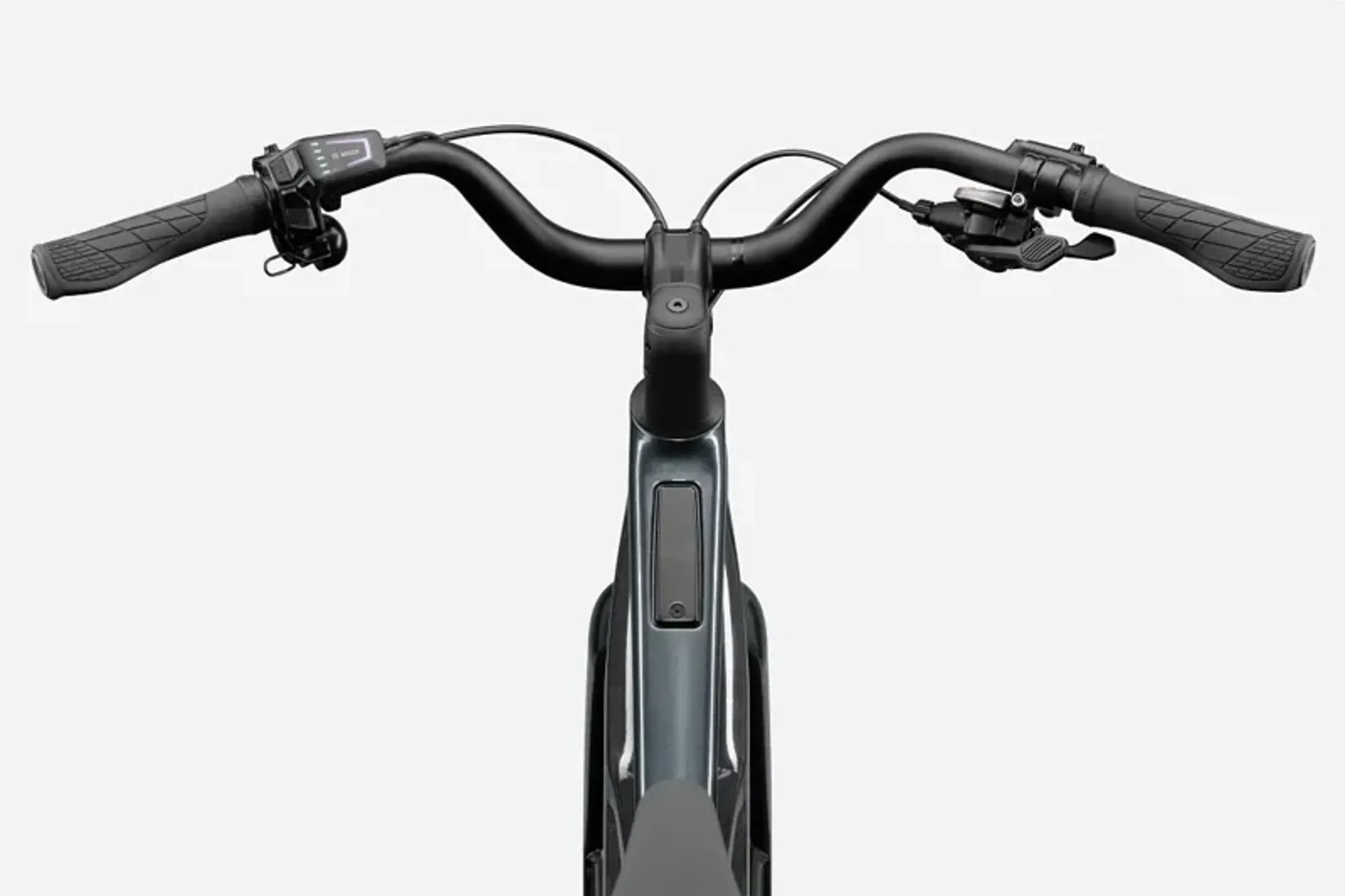

Handlebar
Cannondale Urban Backsweep, 93mm rise, 24 degree sweep, 31.8 clamp, 700mm
-
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°, with SP-Connect SPC+ mount top cap
-
Grips
Ergon GA3
-

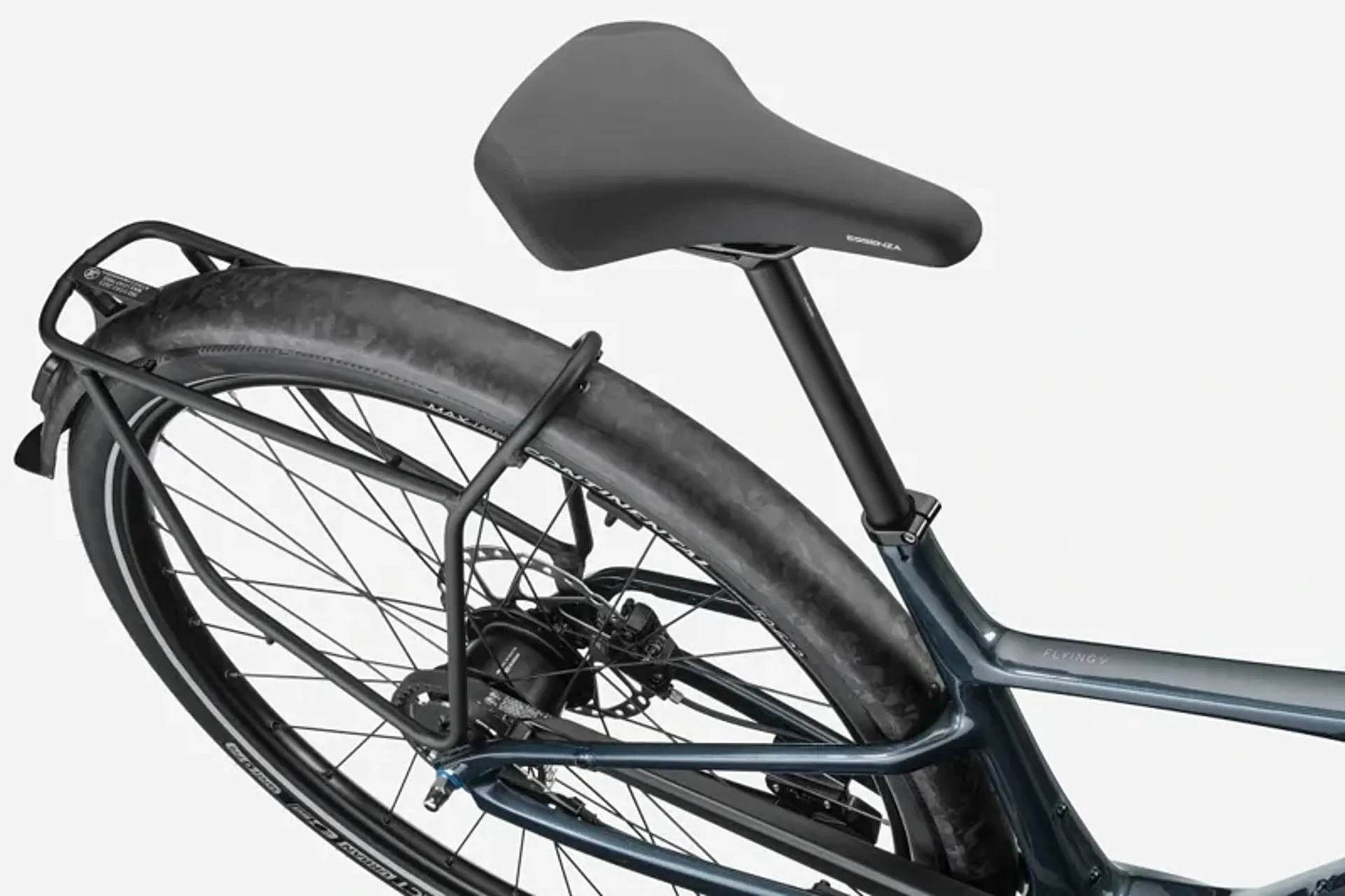

Saddle
Selle Royal Essenza, Moderate Wide
-
Seatpost
Cannondale 3, 6061 Alloy, 31.6, 300mm (SM), 350mm (MD), 400mm (L & XL)
-
Connectivity components
Cannondale AppTag, SP-Connect SPC+ top cap mount for Cannondale Conceal stem
-
Extra

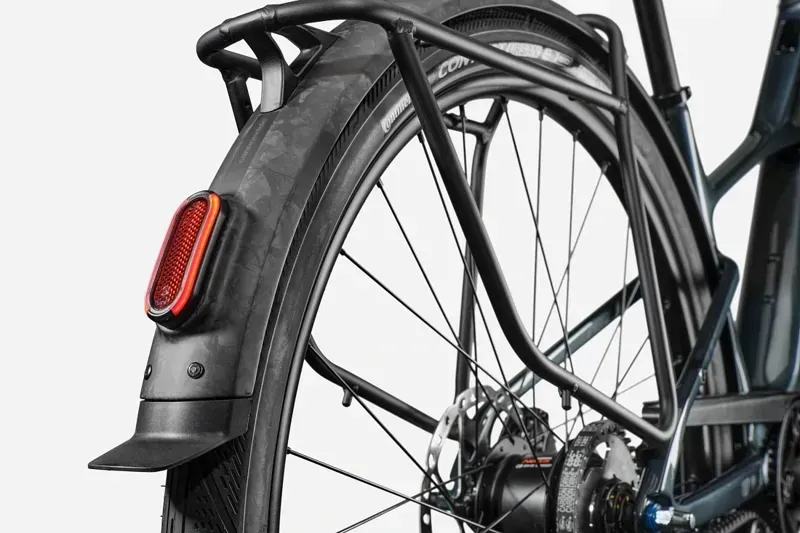

Custom full-coverage carbon fiber fenders, Supernova Mini2 LDM front light and SuperNova TL3-Z rear light with integrated reflector, rear pannier rack (18kg), kickstand
